Introduction
1. Size: 7000x2.280x2.400mm with 6340kg
2. Application: Crawler water well drilling rig is suitable for mining, quarrying, railway, traffic, water conservancy, building materials, military and other open-air engineering drilling medium-deep blast holes for high efficiency rock drilling operations. It is also widely used in drilling for anchor support, channel excavation and sewerage projects.
3. Capability: Professional R&D capability, reasonable modification according to different needs of customers.
Details

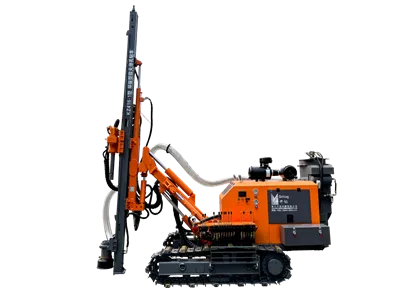

KZ593 series crawler water well drilling rig is a new type of submerged drilling rig developed to meet the market demand, the product has excellent performance, flexible operation, full-featured, wider adaptability, and has a high cost performance ratio.
This product can be widely used in open pit mining, construction foundation excavation, water conservancy, power station, traffic and national defence construction and other projects in the rock drilling operations, but also can be drilled anchoring holes, address pressure measurement holes and drainage holes and other special-purpose rock holes.
Specification Parameters
|
Diesel Engine |
YC4DK100-T304 88KW |
|
Hole Depth |
60m |
|
Hole Dill |
90-254mm |
|
Drill Pipe Sizes |
64/76/89×3000mm |
|
DTH Hammer |
4'5'6' |
|
Feed Speed |
26m/min |
|
Rotation Torque (Max.) |
2.000N.m / 7.000N.m |
|
Rotation Speed |
0-160rpm |
|
Feed speed |
55KN |
|
Feed Type |
Chain Gulinder |
|
Transport Dimensions (LxWxH) |
4,900x2,000x2,200 |
|
Pullup Force (Max.) |
90KN |
|
Trimming Speed (Max.) |
3km/h~4km/h |
|
Gradient |
25 |
|
Total Weight |
6340kg |
|
Transportation Dimensions |
7000x2.280x2.400mm |
Uses
The crawler water well drilling rig is widely used in the construction of photovoltaic power plants, where drilling is an essential part of the construction process. In order to improve drilling efficiency and reduce labour costs, the crawler water well drilling rig has become an efficient drilling tool in the construction process.
Its unique design and powerful functions make the drilling operation more efficient and precise. It saves labour and time costs and helps to complete construction tasks quickly.
Support frame installation and pit excavation: The PV drilling rig is suitable for support frame installation and pit excavation, ensuring accurate drilling and efficient construction.
Efficiency: The crawler water well drilling rig saves labour and time costs thanks to its mechanical advantages, helping to complete construction tasks quickly. As the demand for clean energy continues to rise, photovoltaic power plants, as a mainstream clean power generation facility, continue to progress in terms of construction scale and technology level. In this context, crawler water well drilling rig, as a drilling equipment specially designed for the construction of photovoltaic power plants, has won wide attention and praise due to its excellent performance and wide applicability.
Versatility: It is applicable to various terrains and environments, including mountains, plains and other complex terrains, ensuring the stability and quality of construction.
Features
Sell two options: Winch, dust collector (according to the customer site conditions for a reasonable selection). We also provide the whole machine warranty 3 months and other after-sales service, optional drilling tools according to customer site requirements for optional, a variety of adaptive modification, contact us to discuss your requirements.
Contact
Welcome to buy Open Drill Machinery Manufacturing, high efficiency, easy to operate, crafted with care, must be your best choice. We provide you with factory price, satisfactory service and timely delivery, looking forward to your contact.
