Introduction
1. Size: According to the working condition of each aperture needs
2. Application: High efficiency crushing: low pressure DTH hammer through the piston reciprocating impact for high hardness of rock penetration, to adapt to the f8 above rock.
3. Environmental adaptation: Low / medium / high pressure type (more than 0.5~1.2Mpa) meet the demand of different working conditions.
4. Mobility: Caterpillar design can be fast turnarounds, suitable for site turnover more homework. By 2025, the device with compact structure, design of waste gas discharge and the strong blow function, has become the core in the field of metallurgy, coal, construction and other drilling tools.
Details

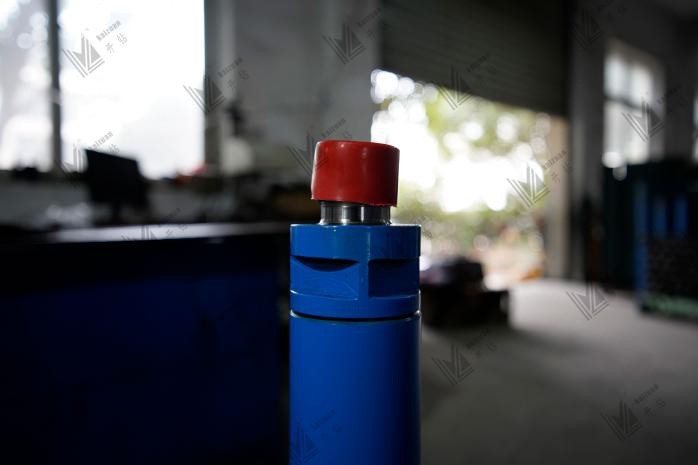

Low pressure DTH hammer is a rock drilling equipment powered by compressed gas (usually air), which is a core component of the down-the-hole drill. It drives the drill bit to break the rock through the reciprocating motion of the piston and is mainly used for hard rock drilling operations. Its characteristic lies in that the impactor works submerged in the hole, and efficient drilling is achieved by combining rotation and impact force.
Specification Parameters
|
Hammer Length without bit |
855 (mm) |
|
Top sub thread |
F48x10PIN |
|
Outside diameter |
80 (mm) |
|
Weight |
22 (KG) |
|
Bit diameter |
90-120 (mm) |
|
Working Pressure |
90-120 (mm) |
|
Air consumption |
7-12 (M*/min) |
|
Bit shank |
CIR90 |
Uses
Infrastructure Construction Project
**Transportation construction: It is used for anchoring and support of railway and highway slopes, construction of tunnel pipe sheds and roadbed reinforcement.
**Water resources and hydropower engineering: Participate in the dam seepage prevention treatment, drain drill and foundation construction of hydropower station in the construction field is applied to the pile into hole, the anti-floating anchor rod construction and foundation reinforcement.
Mineral and Energy Development
**Mining: Applicable to open-pit mines, underground ore mining and blasting hole drilling in quarries.
**Energy development: For geothermal well drilling, well construction and auxiliary operation of oil and gas exploration.
Special Engineering Field
**Geological disaster control: It is used in projects such as anchor cable reinforcement for mountain slopes and foundation pit support.
**Defence and chemical: Participate in military facilities and special chemical engineering drilling requirements.
Features
Low / medium / high air pressure models (above 0.5-1.2Mpa) meet the requirements of different working conditions.
Contact
Welcome to purchase drilling machinery manufacturing. With high working efficiency, simple operation and meticulous craftsmanship, it is definitely your best choice. We offer you factory prices, satisfactory services and timely delivery. We look forward to your contact.
