Introduction
- Sizes：4,900x2,100x2,200 and 4,500kg/4,250kg

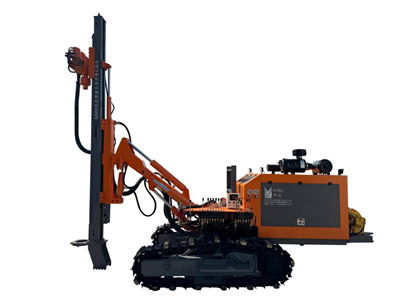

- Application: yellow drill rig crawler is mainly used in earthwork projects, such as pile driving, mining, etc. Its design enables the impactor to submerge into the hole and directly impact the drill bit, while the rotary machinery drives the drill pipe to rotate outside the hole, thereby drilling into the ore and rock.

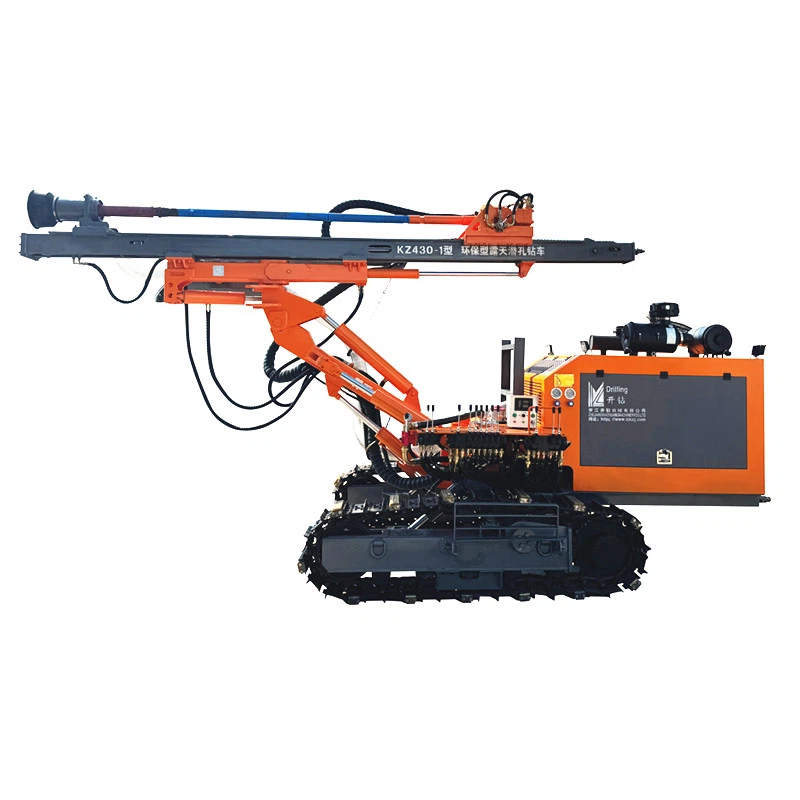

- In specific fields, such as photovoltaic engineering, down-the-hole drills also play a significant role.
Details
The yellow drill rig crawler is equipped with a dual-motor rotary head and a multi-way valve with adjustable rotary speed. The rotary torque can reach 1950N.m, meeting the requirements of φ76 drill pipes and 130 hole diameters. The maximum rotational speed can reach up to 150 revolutions, meeting the demands of some customers for high-speed drilling in soft rock layers. Meanwhile, the yellow drill rig crawler is standard-equipped with engineering tracks and plunger motors, which makes the climbing ability stronger and the quality more stable and reliable. This model is the product with the highest configuration among similar models.
Specification Parameters
|
dynamic parameter |
|||
|
Drilling rig model |
engine |
rated power |
|
|
KZ-420B |
Yuchai YCD4R22T-8 |
60kW |
|
|
KZ-420B-1 |
Yuchai YCD4R22T-8 |
60kW(Standard equipped with a dry dust collector ) |
|
|
functional parameter |
|||
|
Drill pipe type |
Φ76x3,000mm |
||
|
Diameter of drill hole |
φ90-130mm |
||
|
Maximum working torque |
2,200N.m |
||
|
Speed of rotation |
0-150rpm |
||
|
Beam of propulsion |
|||
|
Force of propulsion |
15 kN |
||
|
Force of lift |
25 kN |
||
|
Mode of propulsion |
Cylinder chain |
||
|
chassis |
|||
|
Speed of walking |
2.5km/h |
||
|
Hill climbing ability |
25º |
||
|
Track frame swing Angle |
±10° |
||
|
Dimensions and Weight |
|||
|
Transport dimensions (L x W x H) |
4,900x2,100x2,200 |
||
|
Total weight |
4,500kg/4,250kg |
||
|
configuration table |
|||
|
Standard equipment |
Fit and match |
quantity |
|
|
Φ76 drill pipe |
Φ60 drill pipe |
20m |
|
|
A Φ115 bit |
A Φ90 bit |
1 piece |
|
|
4 "impactor |
3.5 "impactor |
1 set |
|
|
Φ38 steel wire hose |
Φ38 steel wire hose |
2 roots |
|
Uses
Yellow drill rig crawler advantage: high mechanical efficiency: yellow drill rig crawler advanced design, high mechanical efficiency, improve the workers operating proficiency can quickly boring task.
Light easy move: yellow drill rig crawler machine light weight, easy to operate, most for drilling rig and air compressor fission, easy to move and transport.
Durability: the project track, track is not easy to wear and tear, mountain climbing gets an extend the service life of the equipment.
Efficient removal: yellow drill rig crawler adopts semi-auto remove the drill pipe, improve work efficiency, reduce the time of manual operation. These advantages make yellow drill rig crawler in urban construction, surface blasting, road, river, water and electricity, and other projects has been widely applied.
Features
Sell two matching scheme: forearm rotate 360 degrees or properly modified according to customer's requirements Green environmental dust removal system we provide after-sales services such as the machine warranty for three months provide 24-hour online service if you have any questions.
Contact
Welcome to purchase from Kaizuan Machinery Co., LTD. Factory direct sales, smooth operation, high-quality materials, quality guaranteed. We provide you with satisfactory solutions. Welcome your inquiries!
